One-Pc Ball Valves NPS 1/4"~ 2"
Model：HE-112
Sizes range: "NPS 1/4"~ 2" (DN8 ~ DN50)"
Port availability: Reduce port
Working pressure: 1000WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded end
Seat material: PTFE
Note: Handle locking (option)
Download
Add to inquiry
Port availability: Reduce port
Working pressure: 1000WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded end
Seat material: PTFE
Note: Handle locking (option)

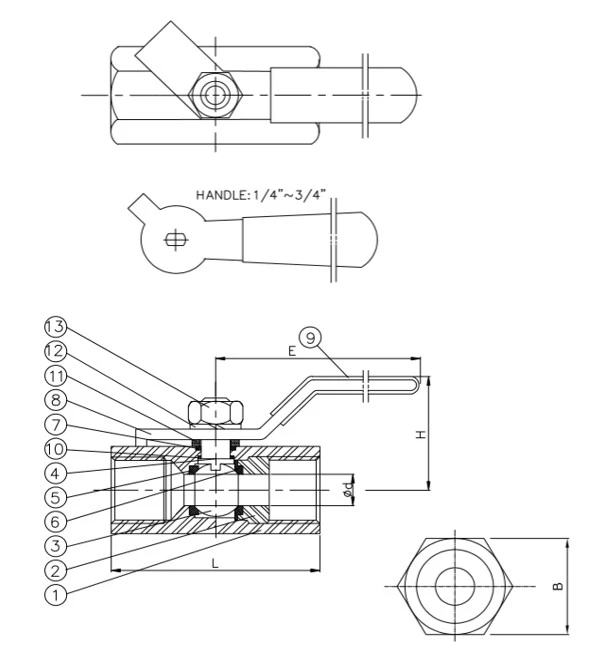

MATERIAL LIST
Taiwan Valves Manufacturer
One piece stainless steel ball valve, 1 PC ball valve, model HE-112, NPS 1/4" to 2", CF8M body, PTFE seat.
|
No. |
PART NAME |
SPECIFICATION |
|
1 |
BODY |
ASTM A351 GR.CF8M |
|
2 |
SEAT RETAINER |
SS316 |
|
3 |
BALL |
ASTM A351 GR.CF8M |
|
4 |
STEM |
SS316 |
|
5 |
BALL SEAT |
PTFE |
|
6 |
BALL SEAT(2) |
PTFE |
|
7 |
STEM PACKING |
PTFE |
|
8 |
HANDLE |
SS304 |
|
9 |
HANDLE SLEEVE | PVC |
|
10 |
THRUST WASHER |
PTFE |
|
11 |
GLAND |
SS304 |
|
12 |
WASHER |
SS304 |
|
13 |
NUT |
SS304 |
DIMENSIONS (mm)
|
SIZE |
d |
L |
B |
H |
E |
|
|
NPS |
DN |
|||||
|
¼〞 |
8 |
5 |
46.5 |
17.5 |
30 |
62 |
|
⅜〞 |
10 |
7 |
51 |
21 |
30 |
82 |
|
½〞 |
15 |
9.2 |
64 |
25 |
45 |
92 |
|
¾〞 |
20 |
12.5 |
68 |
32 |
50 |
94 |
|
1〞 |
25 |
15 |
77 |
38 |
68 |
118 |
|
1¼〞 |
32 |
20 |
88 |
48 |
71 |
137 |
|
1½〞 |
40 |
25 |
96 |
55 |
75 |
137 |
|
2〞 |
50 |
32 |
108 |
68 |
85 |
151 |
