One-Pc Ball Valves NPS 1/4"~ 2"
Model：HE-117
Sizes range: "NPS 1/4"~ 2" (DN8 ~ DN50)"
Port availability: Reduce port
Working pressure: 1000WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded end
Seat material: PTFE
Note:
Download
Add to inquiry
Port availability: Reduce port
Working pressure: 1000WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded end
Seat material: PTFE
Note:

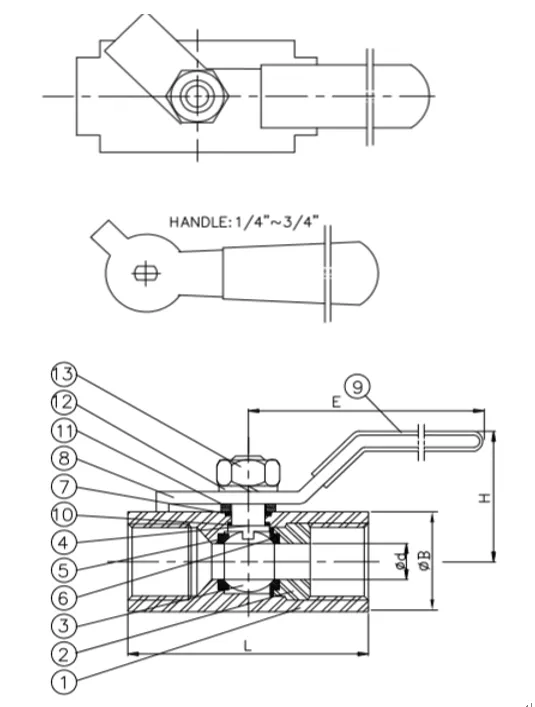

MATERIAL LIST
Taiwan Valves Manufacturer
One piece ball valve, NPS 1/4" to 2", stainless steel body, PTFE seat, threaded end, for industrial use.
|
No. |
PART NAME |
SPECIFICATION |
|
1 |
BODY |
ASTM A351 G ,CF8M |
|
2 |
SEAT RETAINER |
SS316 |
|
3 |
BALL |
SS316 |
|
4 |
STEM |
SS316 |
|
5 |
BALL SEAT |
PTFE |
|
6 |
BALL SEAT(2) |
PTFE |
|
7 |
STEM PACKING |
PTFE |
|
8 |
HANDLE |
SS304 |
|
9 |
HANDLE SLEEVE |
PVC |
|
10 |
THRUST WASHER |
PTFE |
|
11 |
GLAND |
SS304 |
|
12 |
WASHER |
SS304 |
| 13 |
NUT |
SS304 |
DIMENSIONS (mm)
|
SIZE |
d |
L |
B |
H |
E |
|
|
NPS |
DN |
|||||
|
¼〞 |
8 |
5 |
40 |
19 |
30 |
60 |
|
⅜〞 |
10 |
7 |
45 |
23 |
33 |
80 |
|
½〞 |
15 |
9 |
57 |
28.5 |
57 |
110 |
|
¾〞 |
20 |
12.5 |
60 |
33.5 |
60 |
110 |
|
1〞 |
25 |
15 |
70 |
42 |
70 |
124 |
|
1¼〞 |
32 |
20 |
77 |
55 |
75 |
152 |
|
1½〞 |
40 |
25 |
87 |
60 |
80 |
150 |
|
2〞 |
50 |
32 |
104 |
74 |
85 |
155 |
