Three-Pc Ball Valves NPS 1/2"~ 2"
Model：HE-313
Sizes range: "NPS 1/2"~ 2" (DN15 ~ DN50)"
Port availability: Reduce port
Working pressure: 1/2"~ 2",2000WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded end
Seat material: PTFE
Note: Handle locking (option)
ISO5211 mounting pad
Download
Add to inquiry
Port availability: Reduce port
Working pressure: 1/2"~ 2",2000WOG
Temp. rating: -10°C~180°C
Body material: ASTM A351, CF8M
Trim material: SS ball & stem
End connection: Threaded end
Seat material: PTFE
Note: Handle locking (option)
ISO5211 mounting pad

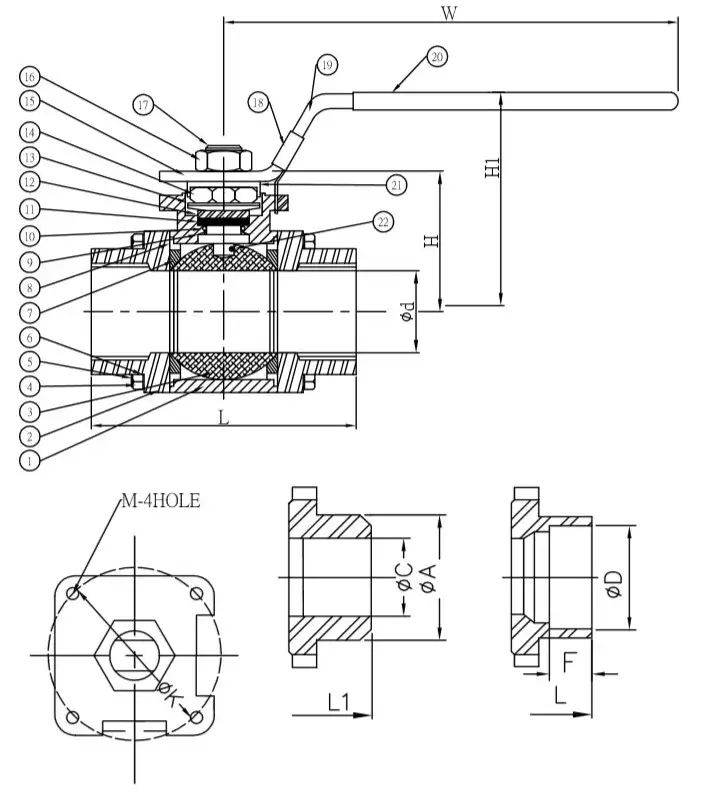

MATERIAL LIST
Taiwan Valves Manufacturer
3 PCS ball valve, three piece ball valve NPS 1/2" to 2", CF8M body, PTFE seat, threaded end, ISO5211 pad.
|
No. |
PART NAME |
SPECIFICATION |
|
1 |
BODY |
ASTM A351 GR.CF8M/A216WCB |
|
2 |
CAP |
ASTM A351 GR.CF8M/A216WCB |
|
3 |
BALL |
ASTM A351 GR.CF8M/CF8 |
|
4 |
NUT |
SS304 |
|
5 |
BOLT |
SS304 |
|
6 |
WASHER |
SS304 |
|
7 |
BALL SEAT |
PTFE |
|
8 |
BODY SEAL |
PTFE |
|
9 |
THRUST WASHER |
PTFE |
|
10 |
O-RING |
VITON |
|
11 |
STEM PACKING |
PTFE |
|
12 |
GLAND RING |
SS304 |
|
13 |
BEVEL WASHER |
SS301 |
|
14 |
STEM NUT |
SS304 |
|
15 |
WASHER |
SS304 |
|
16 |
NUT |
SS304 |
|
17 |
STEM |
SS316 |
|
18 |
LOCKING DEVICE (option) |
SS304 |
|
19 |
HANDLE |
SS304 |
|
20 |
HANDLE SLEEVE |
PVC |
|
21 |
WASHER |
SS304 |
|
22 |
ANTI-STATIC DEVICE |
SS316 |
DIMENSIONS (mm)
|
SIZE |
ød |
øC |
øD |
øA |
L |
L1 |
H |
H1 |
W |
K |
M |
|
|
NPS |
DN |
|||||||||||
|
½〞 |
15 |
11 |
15.8 |
22.4 |
21.3 |
70 |
67 |
28.5 |
57 |
121.5 |
36 |
M5 |
|
¾〞 |
20 |
14.3 |
21 |
27.4 |
27.1 |
74 |
72 |
31.7 |
60 |
121.5 |
36 |
M5 |
|
1〞 |
25 |
20 |
26.6 |
34.2 |
34.1 |
99 |
97 |
38.5 |
75 |
151 |
42 |
M5 |
|
1¼〞 |
32 |
25.4 |
35.1 |
43 |
42.2 |
110 |
108 |
43.5 |
77 |
151 |
42 |
M5 |
|
1½〞 |
40 |
31.8 |
40.9 |
49 |
48.3 |
117 |
117 |
52 |
86 |
178 |
50 |
M6 |
|
2〞 |
50 |
38.1 |
52.5 |
61.1 |
60.3 |
128 |
128 |
57.6 |
92 |
178 |
50 |
M6 |
