三片式球閥NPS 1/2”~ 4”
型號：HE-316 TC
尺寸範圍：“NPS 1/2”~ 4” (DN8 ~ DN100)”
連接埠可用性：全連接埠
工作壓力：1/2"~2",1000WOG
2-1/2”~3”,800WOG
4”,600WOG
溫度。額定值：-10℃~180℃
閥體材質：ASTM A351、CF8M
內件材質： SS 球和閥桿
端部連接：螺紋/SW/BW端
閥座材質：PTFE
注意：手把鎖定（可選）
線上可維護
ISO5211 直接安裝墊
加入詢問
連接埠可用性：全連接埠
工作壓力：1/2"~2",1000WOG
2-1/2”~3”,800WOG
4”,600WOG
溫度。額定值：-10℃~180℃
閥體材質：ASTM A351、CF8M
內件材質： SS 球和閥桿
端部連接：螺紋/SW/BW端
閥座材質：PTFE
注意：手把鎖定（可選）
線上可維護
ISO5211 直接安裝墊

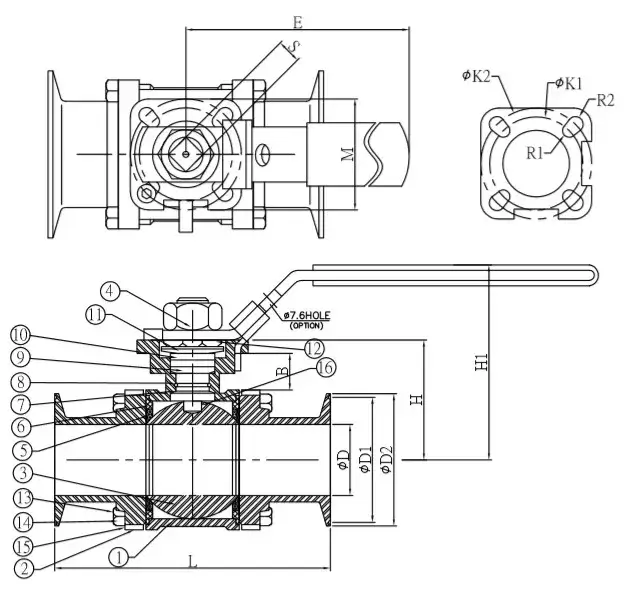

MATERIAL LIST
|
No. |
PART NAME |
MATERIAL |
|
1 |
BODY |
ASTM A351 GR.CF8M |
|
2 |
CAP |
ASTM A351 GR.CF8M |
|
3 |
BALL |
ASTM A351 GR.CF8M |
|
4 |
STEM |
ASTM A276 TYPE 316 |
|
5 |
BALL SEAT |
PTFE |
|
6 |
BODY SEAT |
PTFE |
|
7 |
THRUST WASHER |
POLYFILL TEFLON |
|
8 |
O-RING |
VITON |
|
9 |
STEM PACKING |
PTFE |
|
10 |
GLAND RING |
ASTM A276 TYPE 304 |
|
11 |
BEVEL WASHER |
ASTM A276 TYPE 301 |
|
12 |
NUT |
ASTM A276 TYPE 304 |
|
13 |
BOLT |
ASTM A276 TYPE 304 |
|
14 |
NUT |
ASTM A276 TYPE 304 |
|
15 |
WASHER |
ASTM A276 TYPE 304 |
|
16 |
ANTI-STATIC DEVICE |
ASTM A276 TYPE 304 |
DIMENSIONS (mm)
|
SIZE |
øD |
L |
H |
H1 |
S |
M |
ØK1 |
øK2 |
R1 |
R2 |
B |
ØD1 |
ØD2 |
E |
|
|
NPS |
DN |
||||||||||||||
|
½〞 |
15 |
9.5 |
91 |
43 |
71 |
9 |
42 |
36 |
42 |
3 |
3 |
16 |
20.2 |
25 |
116 |
|
¾〞 |
20 |
15.9 |
102 |
46.7 |
74 |
9 |
42 |
36 |
42 |
3 |
3 |
16 |
20.2 |
25 |
116 |
|
1〞 |
25 |
22.2 |
114 |
50.4 |
78 |
11 |
50 |
42 |
50 |
3 |
3.5 |
17 |
43.6 |
50.4 |
156 |
|
1¼〞 |
32 |
28.5 |
120 |
55.6 |
94 |
11 |
50 |
42 |
50 |
3 |
3.5 |
17 |
43.6 |
50.4 |
156 |
|
1½〞 |
40 |
34.9 |
140 |
68 |
107 |
14 |
70 |
50 |
70 |
3.5 |
4.5 |
21 |
43.6 |
50.4 |
181 |
|
2〞 |
50 |
47.6 |
156 |
76 |
116 |
14 |
70 |
50 |
70 |
3.5 |
4.5 |
21 |
56.3 |
63.9 |
181 |
|
2½〞 |
65 |
60.3 |
197 |
96 |
145 |
17 |
102 |
70 |
102 |
4.5 |
5.5 |
27 |
70.6 |
77.4 |
260 |
|
3〞 |
80 |
73 |
229 |
106 |
154 |
17 |
102 |
70 |
102 |
4.5 |
5.5 |
27 |
83.3 |
90.9 |
260 |
|
4〞 |
100 |
97.6 |
243 |
126 |
185 |
22 |
125 |
102 |
125 |
5.5 |
6.5 |
23 |
110.3 |
118.9 |
334.5 |
